DJ Splitter Cable

Hello Dermidge,

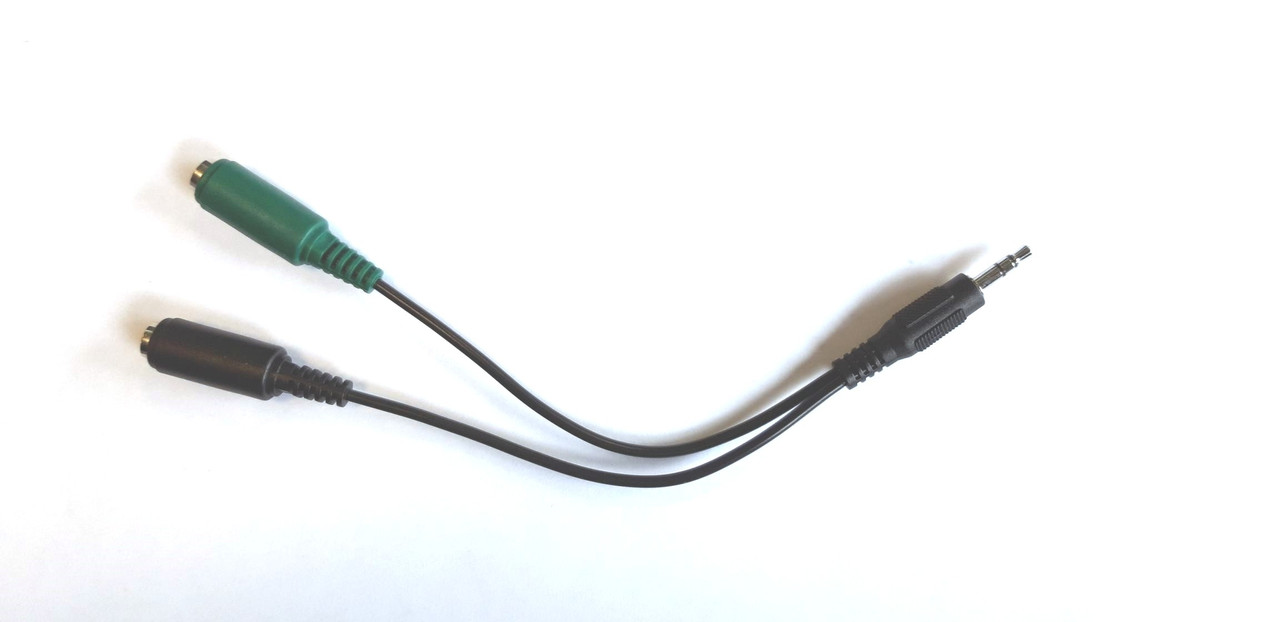

Please confirm you use this cable

as in your photo it looks like a black connector, and it should be a green connector if you use the splitter cable enclosed in the box.

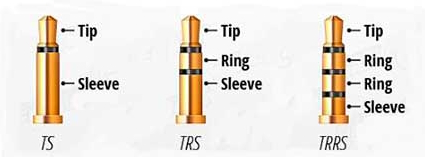

Please use a standard pair of headphones, with simple stereo jack connector (TRS connector).
I think you use a headset with a microphone, whose TRRS connector, which is not well supported in split cables.

Hi, thank you for the reply!

I use original splitter cable. Black connected to speaker. Green connected to headphones.

I use JPL headphones: No micro, but it has TRRS???

Hello Dermidge,

Your headphones has a TRRS connector because there is an inline microphone

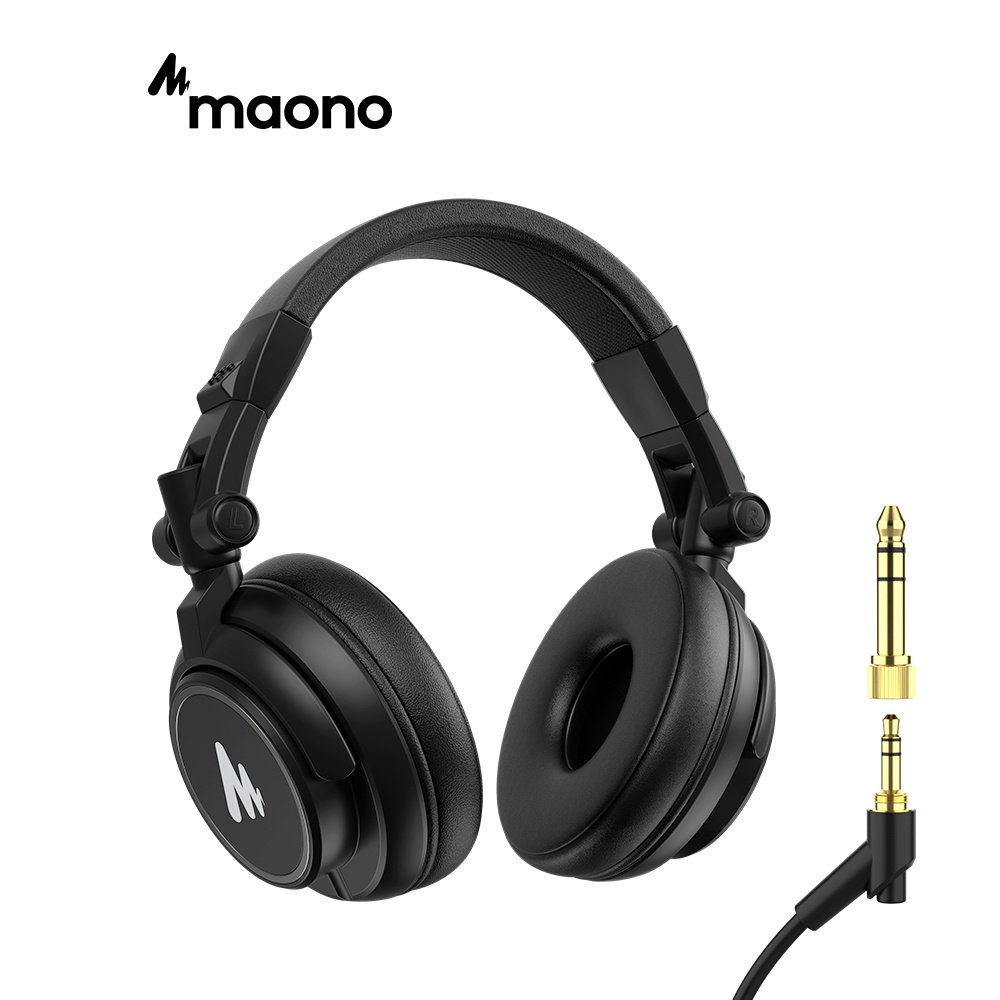

You need headphones with just a stereo connector
https://down-sg.img.susercontent.com/file/78c3dc0221e0b1fcf6064bfc97027231

Hi guys,

I would snswer with a question:

I just got my brand new DJ control mix and I have a problem as well.
In this case the split wire is the original. Gree jack to the headphones and black to the speacker.
I activated the split on the mixer (shift + precueing 2), but on both jacks (green/blak) I hear both songs after activating with the button, the pre listening of the second song.
honestly I don’t know how to proceed.
Just to be more precise… I listen to the song on bank 1 on the master loudspeacker. Then, I want to prelisten the dong on bank 2. Now I push the precueing batton on bank 2 and the loudpeaker plays both songs. The same happens with the headset.
Thank you so much for an help!

Hello Miura,

Welcome to this area,
Please

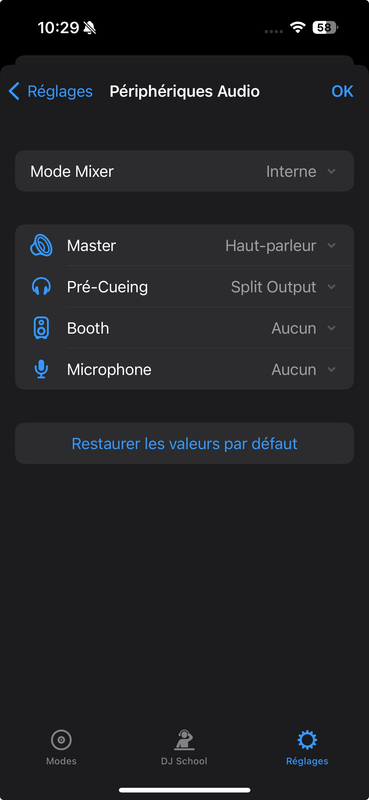

- go in djay Settings > Audio devices and check if the Pre-Cueing setting is actually on Split Output.
- precise your version of djay (Android or iOS, and version number: when you go in djay settings, the version number is at the bottom of the page, for example 5.1.6/

Hello,

Is anybody able to help me? I bought used DJ control Mix, but unfortunately without oryginał splitter cable 🙁 can anybody check the internal TRS (splitter cable connection connection (splitter cable connection), and make a simple electrical drawing?

Or maybe has anybody info, wher to buy working splitter cable?

Best regards.

Hello Bonius,

The DJ splitter cable electronic schematics is pretty simple as you come split a TRS jack 1/8" cabling into 2 female 1/8" stereo plugs with:
- TTS on the 1st connector,
- RRS on the 2nd connector,
but unless you like doing your own cables, it is pretty easy to find the DJ Splitter cable:
- Traktor splitter cable on Amazon,
- Devine VP-DJ splitter cable on Bax,
